Description:

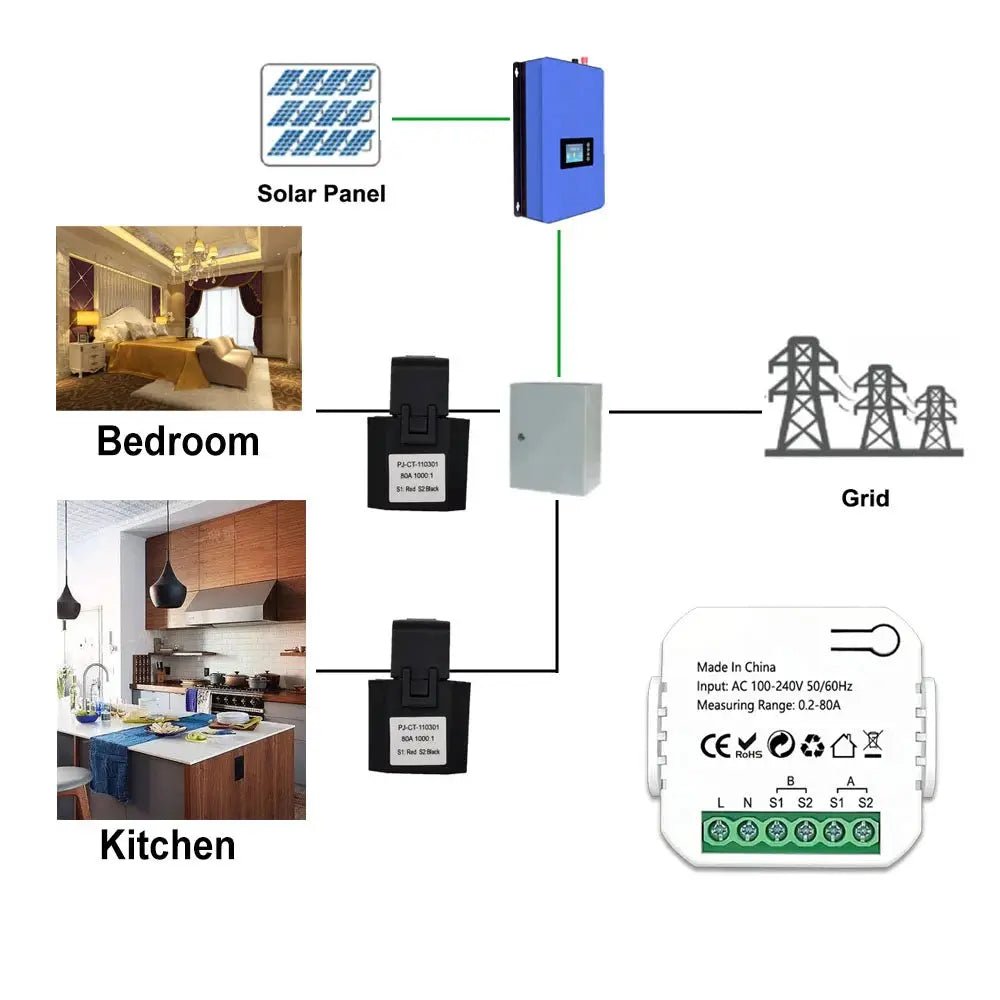

This Tuya WiFi intelligent energy meter helps measure how much energy the solar and photovoltaic system is producing and how much power it is consuming by monitoring application. Controlled by the Tuya APP, the app displays real-time power, current, voltage, power factor and frequency for channel for forward and reverse. Supports automatic setting of valve-values and with push notifications, and the device can be calibrated by adjusting the percentage.

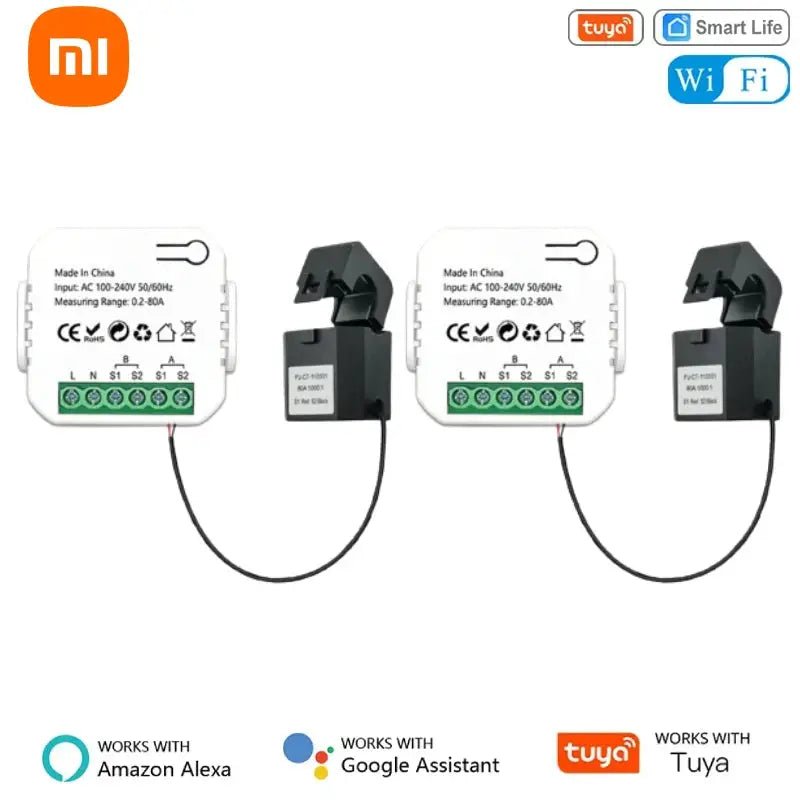

Name: Tuya WiFi Energy Meter

Material: PC

Type: 1CT, 2CT (optional)

Current: 0.2-80A

Input voltage: 110-240 V, 50/60Hz

Accuracy grade: 1.0

Working current: -10℃ to 55℃

Wireless type: 2.4GHz(Not Support 5Ghz)

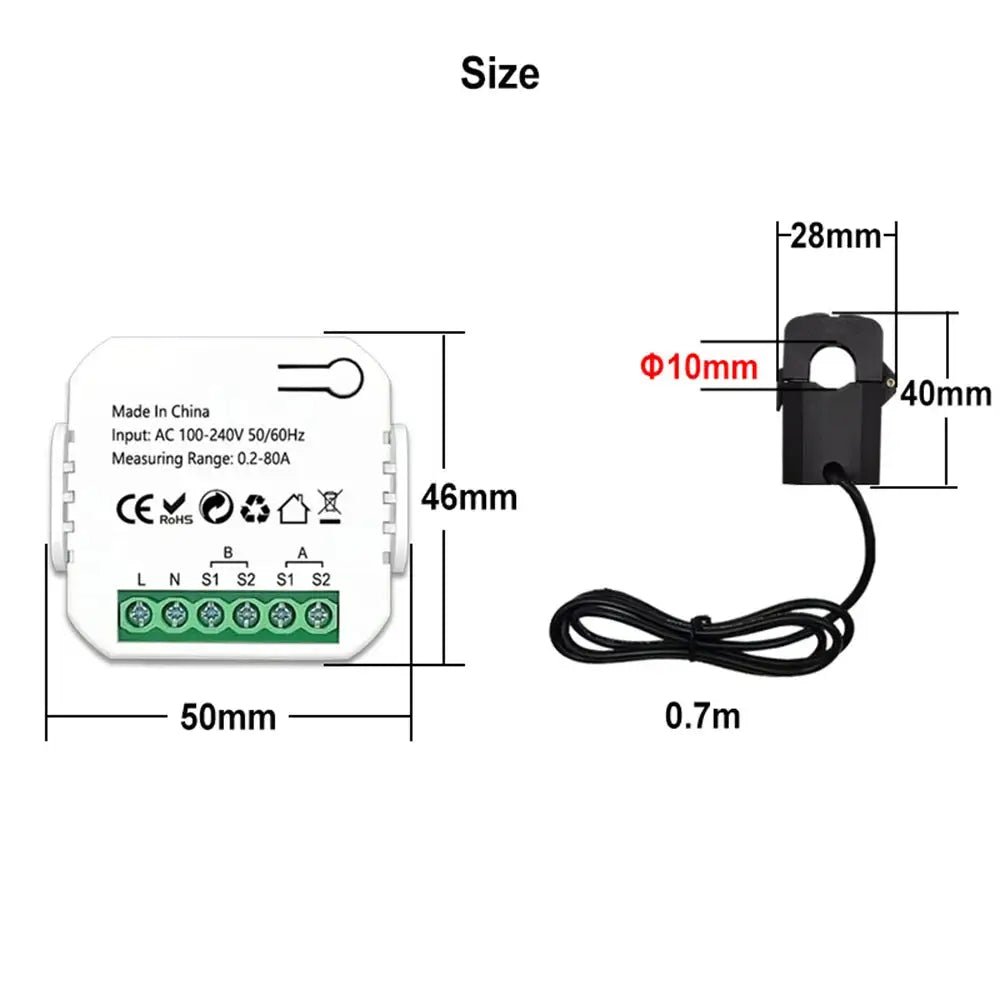

Item size: 47 * 47 * 18mm / 1.85 * 1.85 * 0.71in



Electricity Statistic for each channel in Forward and Reverse direction.

Hourly Elec. (KWh)

Daily Elec. (KWh),

Monthly Elec. (KWh)

-Yearly Elec. (KWh)

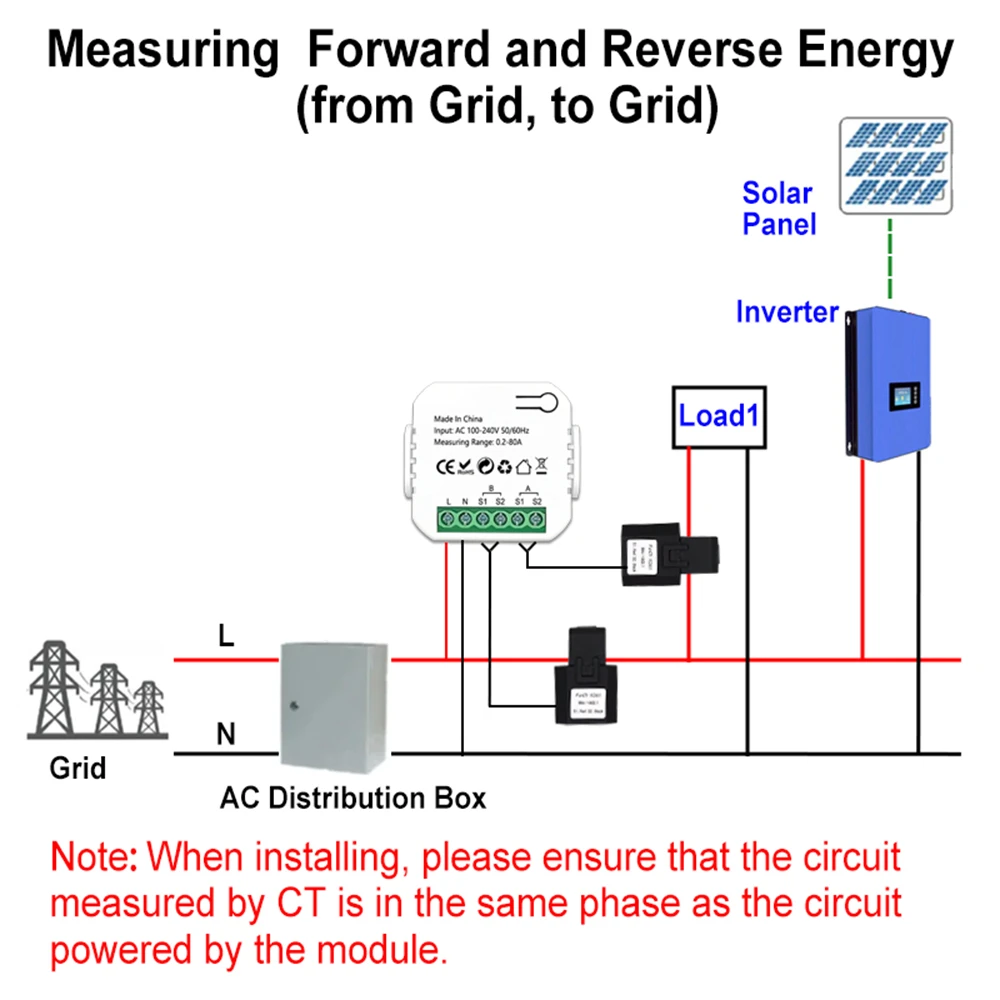

2 Channels For Reverse and Forward direction



1 Channle or 2 Channels are available to Choose

And you can read from App for each Channel



- Real-time total power of 2 channels of reverse and forward direction

- Power for Channel A and B Separately(W)

- Current(mA)

- Voltage(V),

- Power factor, and Frequency(Hz)

Specifications:

Powerful Function: High-precise measurement, real-time monitoring of voltage, current and power of each channel when generating and consuming kilowatts.

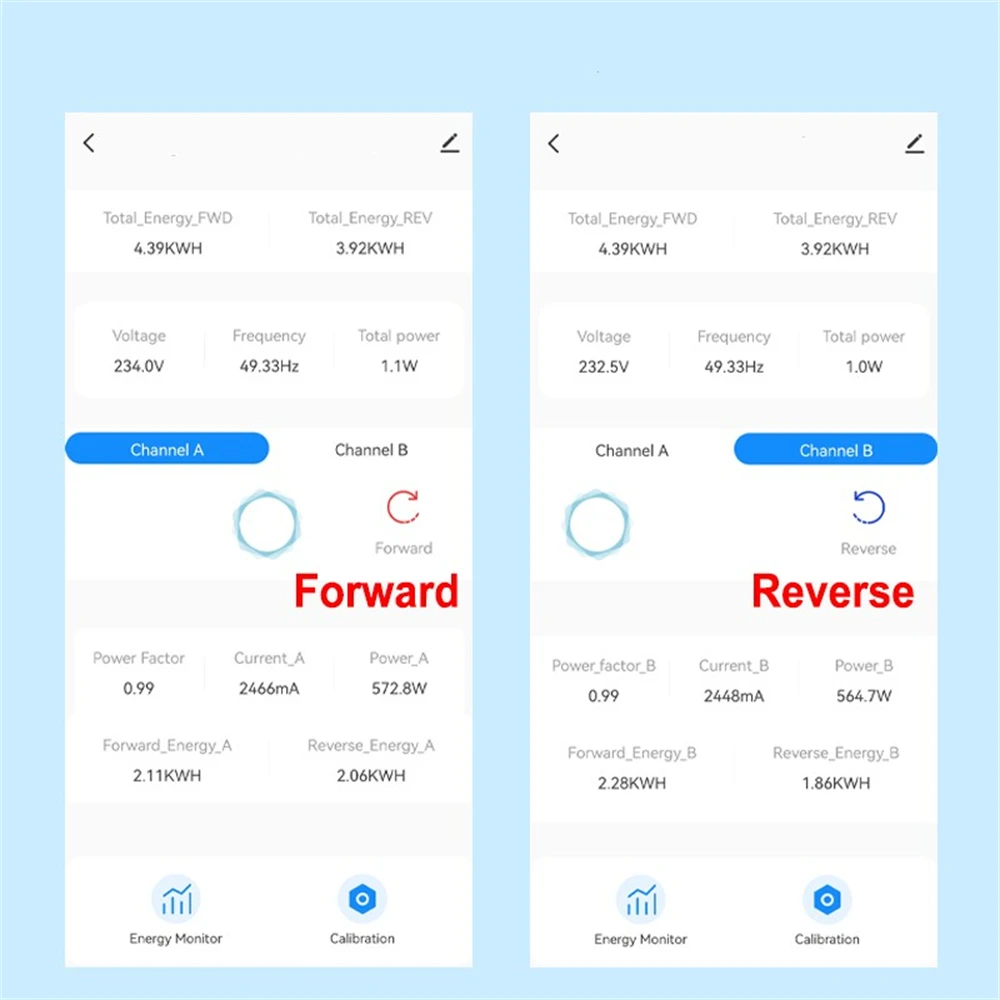

Mobilephone APP Control: The app displays real-time power, current, voltage, power factor and frequency of channel for forward and reverse.

Power Statistics: APP program displays daily, monthly and yearly reverse and forward totals of channel individually. Power usage percentage display to avoids abnormal power usage.

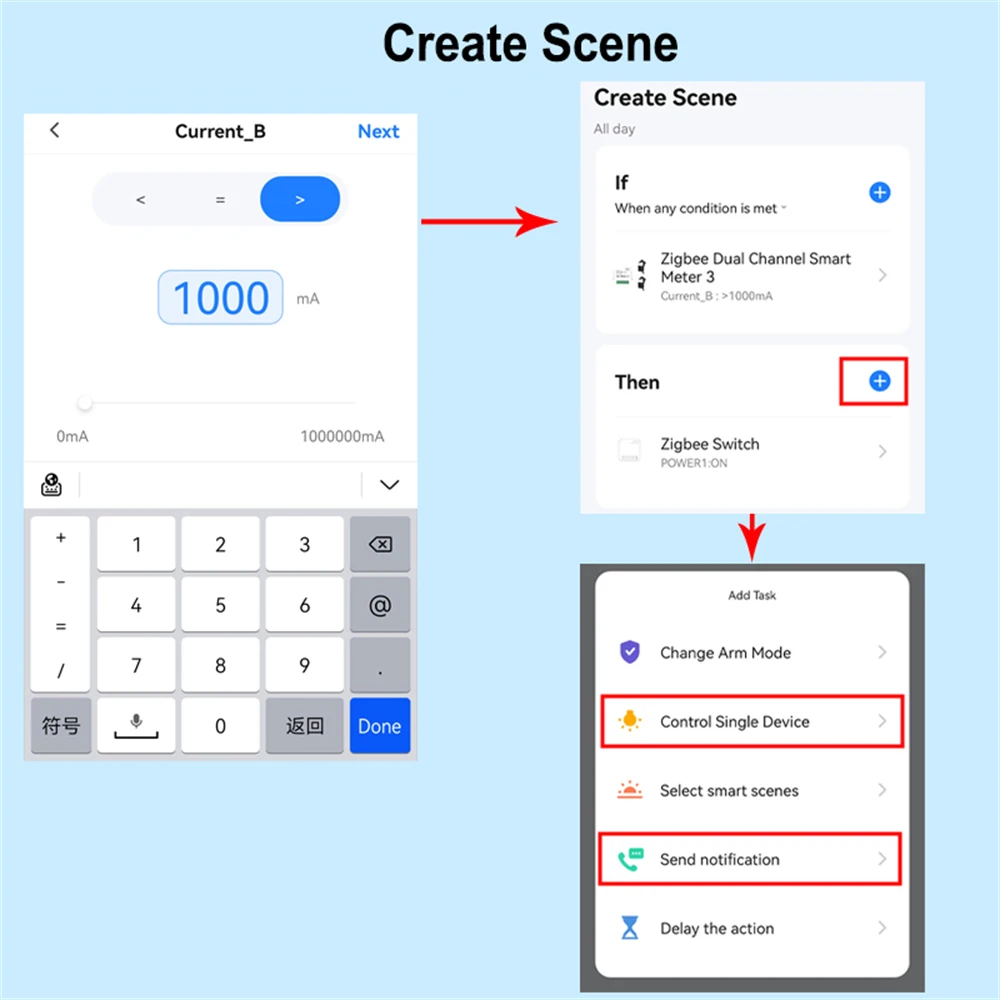

Automation Function: You can set the power or current value in APP, only when the power or current exceeds the value, the device will starts to work.

Feature-rich Design: Automated setting of valve-values and push notifications, and the device is able to be calibrated by adjusting the percentage.

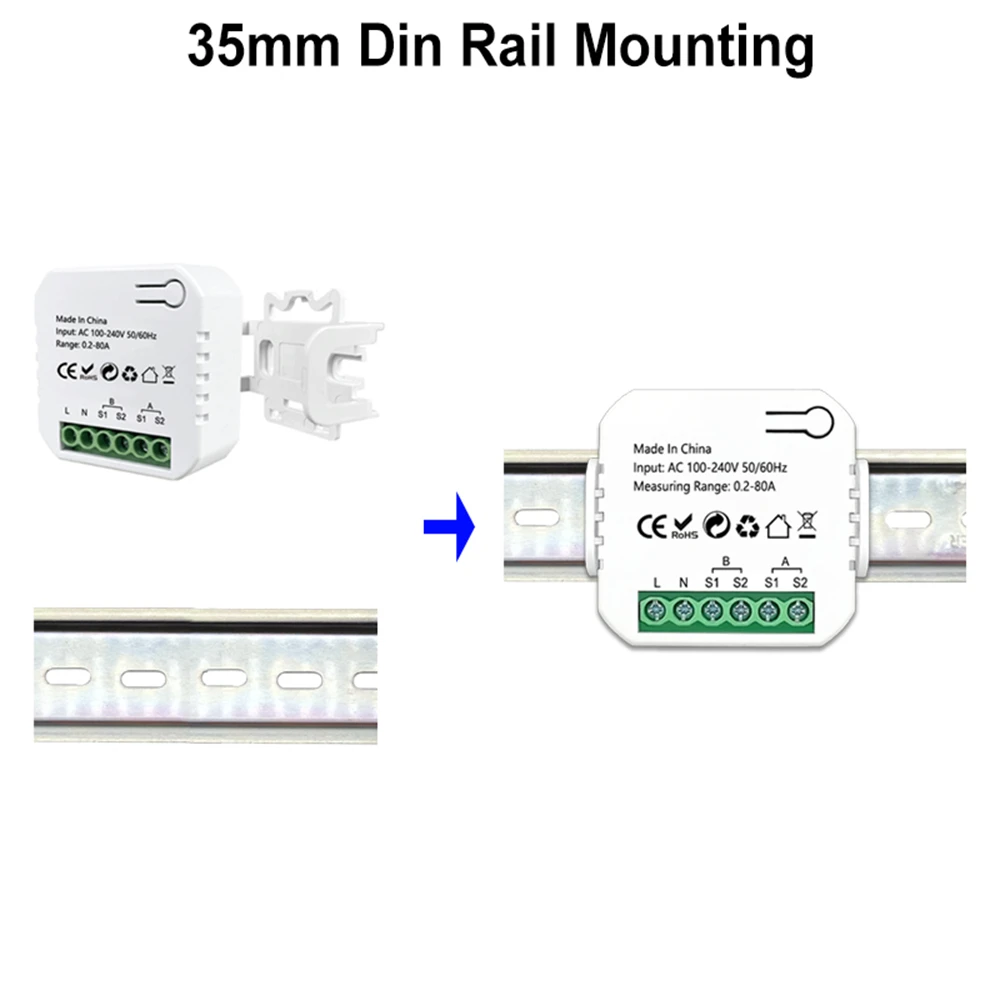

Easy Installation: 35mm rail mounting, no need to replace wires connection is safer, just put the wires in the clip and measure.



Package Included:

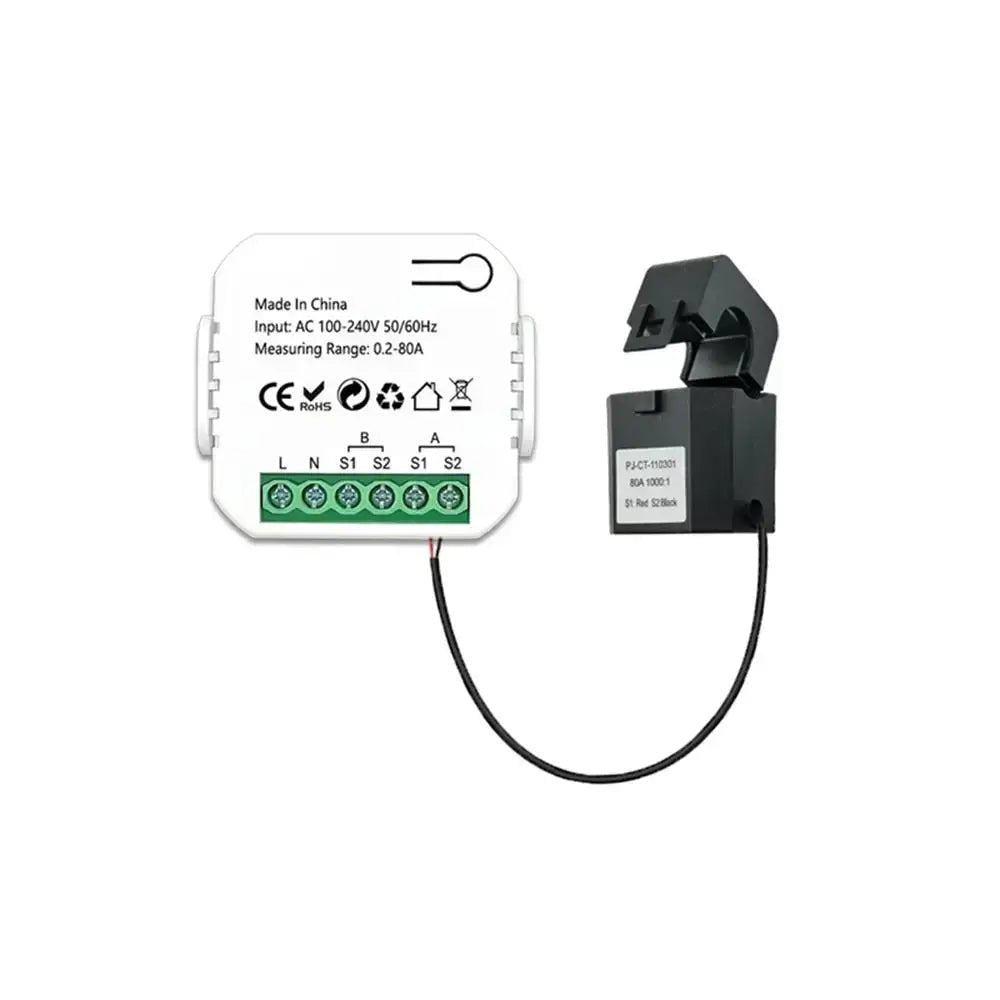

Packing List (1CT):

1 * Tuya WiFi Energy Meter

1 * CT



OR

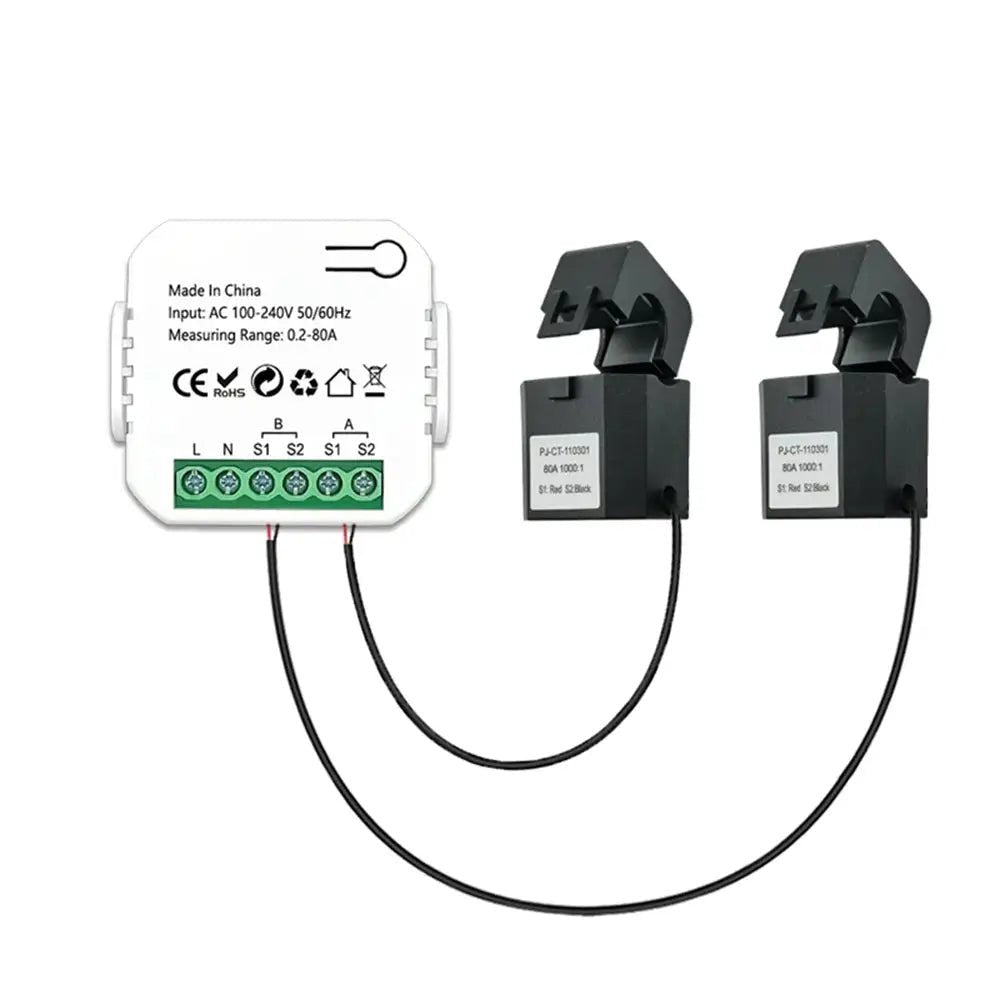

Packing List (2CT):

1 * Tuya WiFi Energy Meter

2 * CT
