High-power household pesticide pump spray fruit tree car wash self-priming booster pump
SPECIFICATIONS
Brand Name: NUOTRILIN
Structure: Diaphragm PumpHigh-power household pesticide pump spray fruit tree er pumpHigh-power household pesticide pump spray fruit tree er pumpHigh-power household pesticide pump spray fruit tree er pump
Power: Electric
Fuel: Electricity
Origin: Mainland China
Pressure: High Pressure
Usage: Water
Model Number: NLS0855YD-12-120FS
Application: car washing , sprayer , cleaning , pumping water
Theory: Reciprocating Pump
Standard or Nonstandard: Standard
Product name: pesticide pump spray 12v
Voltage: dc 12v (24v is also in stock)
Power: 120w
connection port: G1/2 external thread

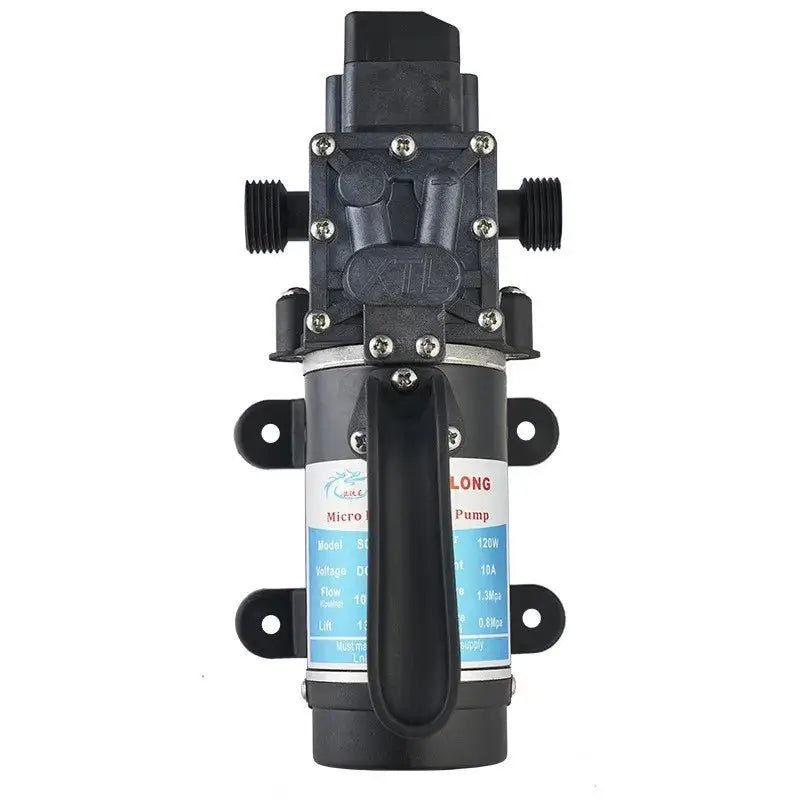

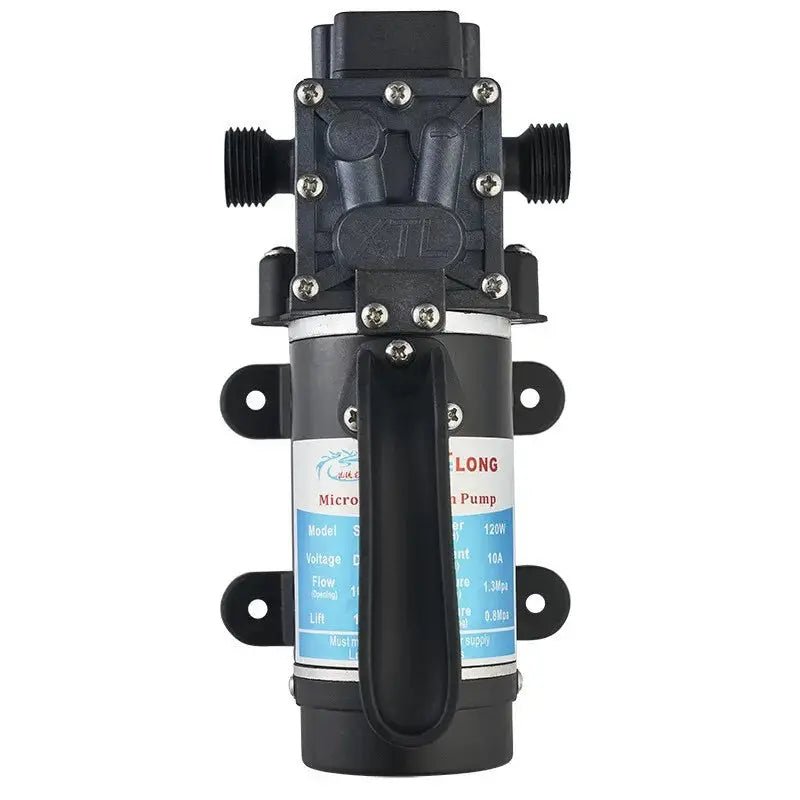

High-power household pesticide pump spray fruit tree car wash self-priming booster pump DC 120W electric diaphragm pump
-
Product name: 12v dc water pump
-
Rated Voltage: dc12v (24v is also in stock)
-
Rated power: 120w
-
Open flow rate: 10L/Min
-
Working pressure: 116PSI (8bar)
-
Setting Max pressure: 188.5PSI (13bar)
-
Allowed medium temperature: 0-70 centigrade
-
Suction distance: 1.5 meter
-
Lift: 80m
-
Color: black
-
Protective valve type:return valve type and automatic pressure switch for choosing
-
Specifications: 197.2mm(L) X 77mm(W) X75mm(H)
-
Weight:1.3kg
-
Corrosion resistant
-
Rubber bracket can absorb shock when pump working
Package Content
-
1 x Water Pump
-
Clean floor, carpet, car, air conditioner
-
Home use for garden sprinklers, shower
-
Agricultural purposes: spray for farm chemical, pesticide
-
Water taps in the boat, caravan or motor home
-
Increase piping pressure
Automatic switch type
When you turn off water outlet, it will cut off the power and stop automatically.
When you turn on water outlet, it will connect the power and run automatically.
This type has strict requirements on the size of water gun outlet( advice 1.5mm / 1.8mm), otherwise it can't work properly or even been damaged.
We also have other type for choosing
|
Model no |
Voltage |
protect valve |
Max |
Max. pressure |
Working pressure |
Open |
Suction |
Lift |
Range |
Connection |
|
M0142-15P |
12V/24V |
Return valve type |
15w |
10bar(145psi) |
8bar(116psi) |
1L/M |
1m |
80m |
B |
|
|
0142-15 |
12V/24V |
pressure switch |
15w |
6bar(87psi) |
3.5bar(50.75psi) |
1.5L/M |
1m |
35m |
A/B/C/D |
|
|
0142-30 |
12v /24v |
pressure switch |
30w |
7bar(101.5psi) |
4bar(58psi) |
3L/M |
1m |
40m |
A/B/C/D |
|
|
0142-45 |
12v |
pressure switch |
45w |
7.5bar(108.75psi) |
4.5bar(65.25psi) |
4L/M |
1m |
45m |
A/B/C/D |
|
|
0142-60 |
12v /24v |
pressure switch |
60w |
8bar(116psi) |
5bar(72.5psi) |
5L/M |
1.5m |
50m |
7m |
A/B/C/D |
|
0142-80 |
12v /24v |
pressure switch |
80w |
9bar(130.5psi) |
5.5bar(79.75psi) |
5.5L/M |
1.5m |
55m |
8m |
A/B/C/D |
|
3210-80 |
12v /24v |
pressure switch |
80w |
10bar(145psi) |
6bar(87psi) |
6L/M |
1.5m |
60m |
8m |
A/B/C/D |
|
3210-100 |
12v 24v 48v |
pressure switch |
100w |
11bar(159.5psi) |
7bar(101.5psi) |
8L/M |
1.5m |
70m |
9m |
A/B/C/D |
|
170142-15J |
12V |
Automatic pressure switch |
15w |
4bar(58psi) |
3bar(43.5psi) |
1.5L/M |
1m |
30m |
J |
|
|
170142-60J |
12V |
return valve |
60W |
8bar(116psi) |
5bar(72.5psi) |
5L/M |
1.5m |
50m |
J |
|
|
S0142-45 |
12V |
return valve |
45W |
7.5bar(108.75psi) |
4.5bar(65.25psi) |
4L/M |
1.3m |
A |
||
|
S0142-70 |
12V/24V |
Automatic pressure switch |
70W |
5bar(72.5psi) |
3bar(43.5psi) |
6L/M |
1.5m |
30m |
B |
|
|
S3210-80 |
12V/24V |
Automatic pressure switch |
80W |
6bar(87psi) |
4bar(58psi) |
8L/M |
1.5m |
40m |
D/E |
|
|
O0142-70 |
12V/24V |
return valve |
70W |
NO |
NO |
6L/M |
1m |
NO |
E |
|
|
O3210-80 |
12V/24V |
return valve |
80W |
NO |
NO |
8L/M |
1.5m |
NO |
B |
