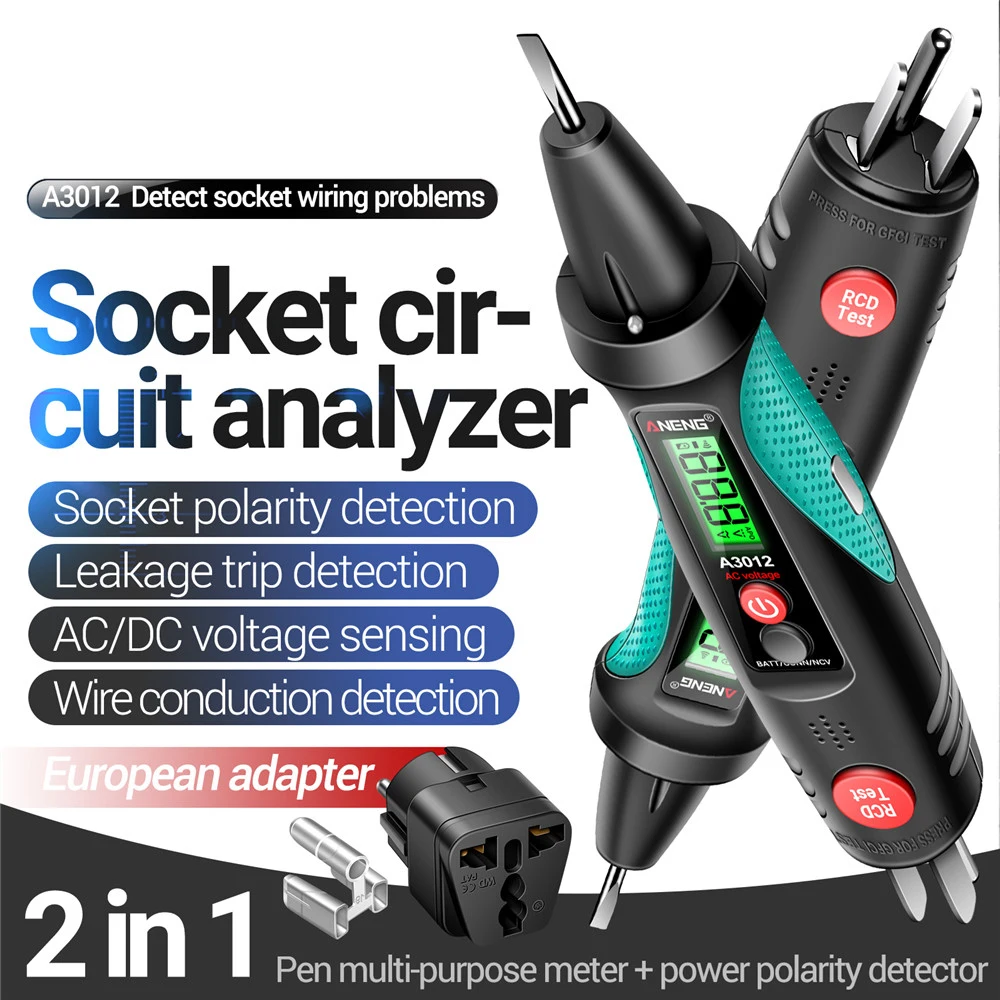

Features:
1. Non contact induction NCV voltage detection: Switch to the "EF" position, place the probe tip of the test pen close to the AC voltage source, and ensure reliable contact between the finger and the contact point. The closer it is to the power source, the more urgent the alarm will sound
2. Flashlight illumination with backlight and high-definition display screen: The lighting lamp assists in night measurement work, eliminating the risk of electric shock, illuminating the dark environment ahead and allowing you to see the screen values clearly, with clear backlight
3. AC voltage measurement: The pen tip is tightly attached to the AC voltage conductor, while the finger is in close contact with the contact point, and the corresponding AC voltage value is displayed on the display screen

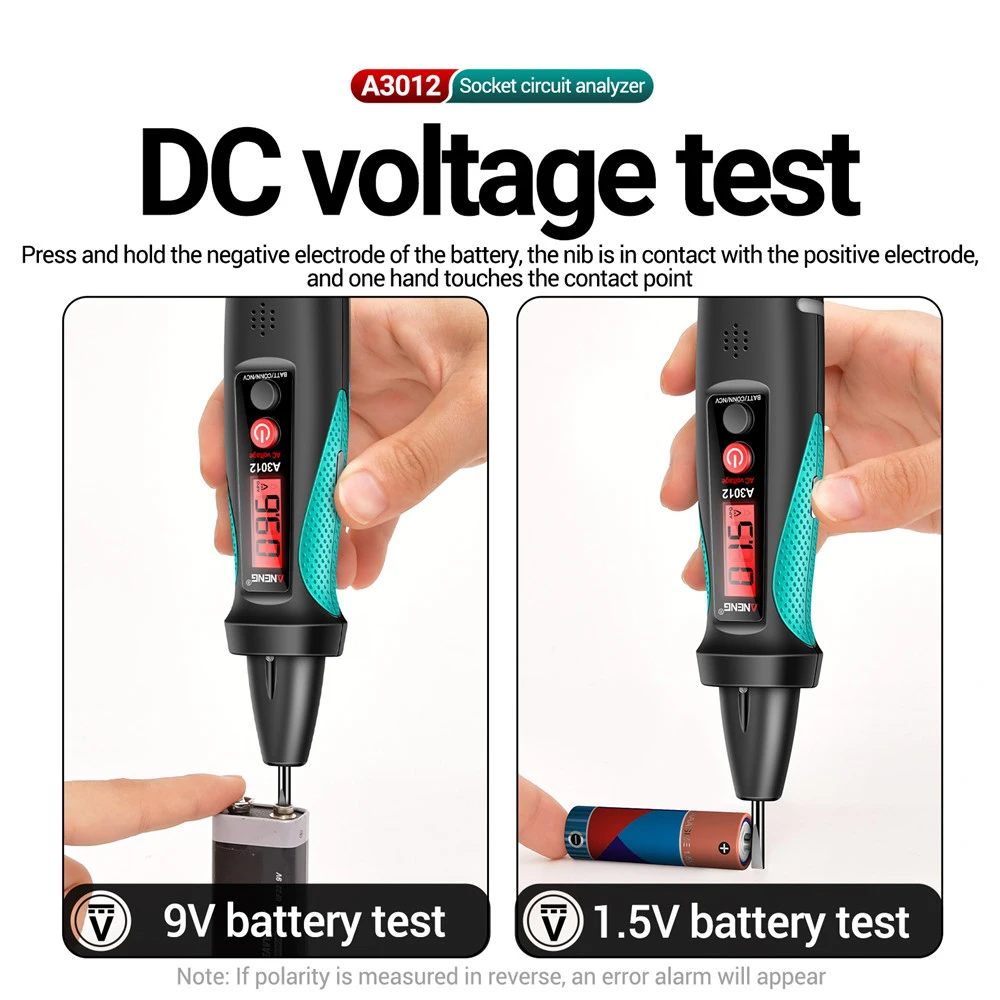

4. DC voltage measurement: Switch to the DC voltage level, hold down the pen tip of the negative electrode of the 1.5V or 9V battery with one hand to make contact with the positive electrode of the battery, and make close contact with the contact point with the other hand. The corresponding voltage value will be displayed on the display screen
5. Wire continuity detection: Switch to the P-C position, hold one end of the uncharged wire with one hand, make contact between the probe tip and the other end of the wire, and ensure reliable contact between the hand and the contact point

Parameters:

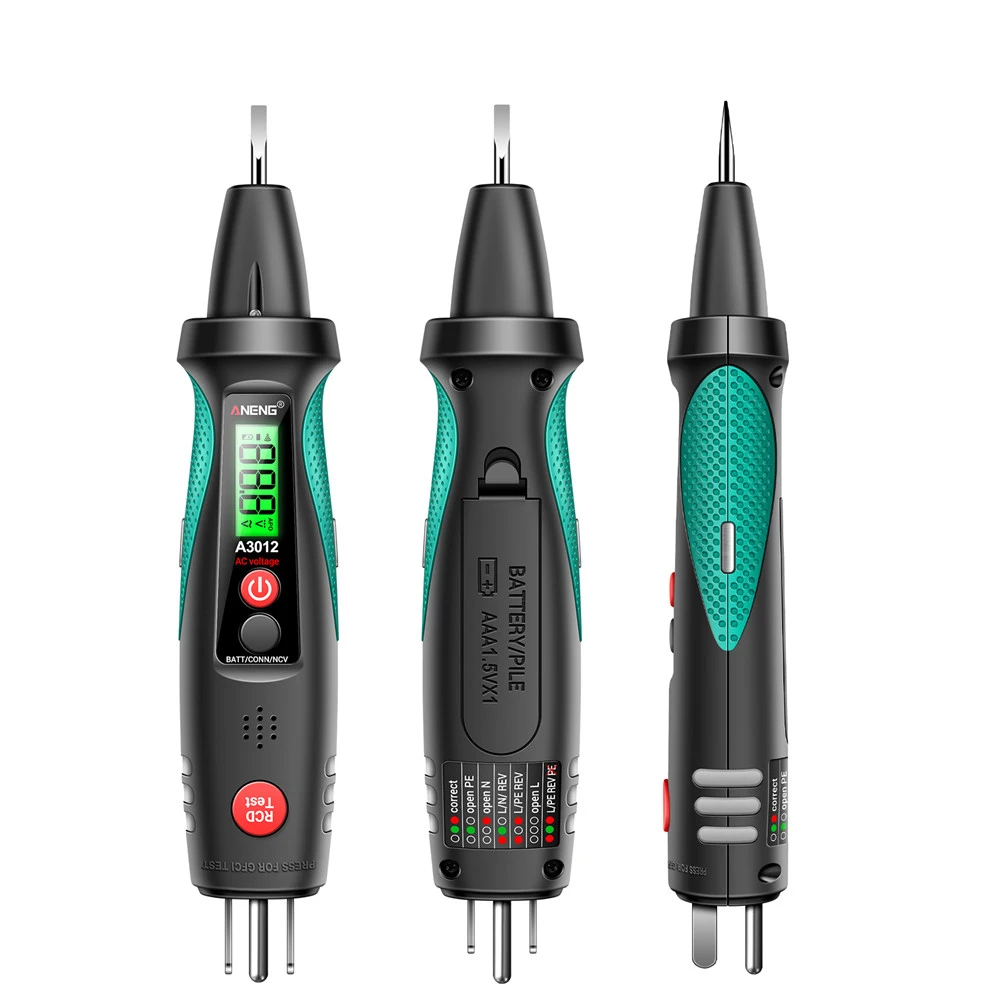

Product model: A3012
Alarm method: sound and light alarm
Product material: ABS/metal
AC voltage: 12-300V 50Hz 60Hz Accuracy: (4%+10)
Rated voltage of socket: Un=200V-250AC
Power supply: 1XAAA battery (shipped without battery)

Package Includes:
Socket circuit analyzer * 1
Instruction manual * 1
Socket protection shell * 1
